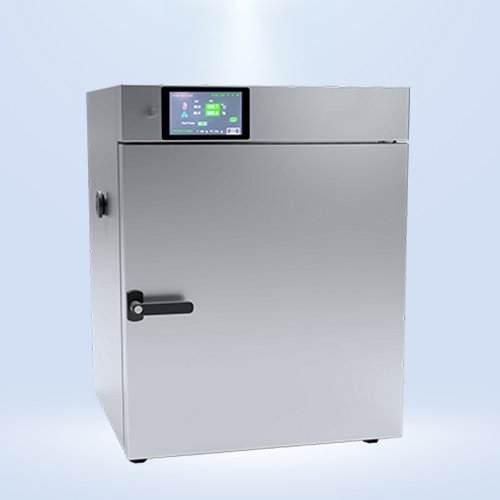

Bacteriological Incubator

The basic requirement of a microbiological lab is to have an environment that is free from contamination. Atok make Laboratory incubators provide this environment that gives microbiological cultures, cell cultures and tissue cultures with special conditions regulating viable growth factors such as temperature, ventilation etc. This is the ultimate equipment for the growing and storing of bacterial cultures.

  • Double walled with PUF insulation.
  • Stainless Steel trays.
  • LED light (200 litres & above).
  • PU wheels for easy movement.
  • Complete operations is driven through a single temperature controller with 2-line alphanumerical LCD display & data logging capacity of upto 1000 readings.
  • High-quality PT-100 Temperature sensor.
  • Audio/Visual alarms for deviations.
  • SS 304 Interior & Exterior either SS 304 or Mild Steel.
  • Full length inner glass door & outer metal door with gasket & lock on the outside.
  • Forced air circulation for uniform temperature.
  • U shaped SS tubular heaters.
  • High speed Ethernet based communication with Print facility.
  • Safety devices: High temperature cut-off settable thermostats.
  • Complete with DQ, IQ, OQ, PQ ,SOP & Maintenance Manual.
  • Power supply: 230 volts 50 Hz main supply. Also available with 60 Hz Cycle.

Each Equipment will have IQ, OQ, PQ along with Operations & Maintenance Manual.

Temperature Range: (Ambient+5)°C to 60°C
Temperature Accuracy: ± 0.5°C
Temperature Uniformity: ± 1°C

  • Atom Webdesk Software.
  • 4 Temperature Scanners.
  • Mobile Alert system(SMS alert)
  • 4 channel or 8 channel Remote alarm system.
  • Door Access system (Biometric)
  • ETHERNET COMMUNICATION
  • PID OR PLC BASED CONTROL SYSTEM
  • E-MAIL ALERT
  • COMPLETE RANGE OF ALARMS
  • SAFETY
  • TOUCH SCREEN DOOR ACCESS SYSTEM
  • BIOMETRIC
  • ALARM TRANSMISSION
  • ATOM WEBDESK SOFTWARE
Models Cap. in liters Internal size in mm External size in mm Tray Qty. Tray size in mm Electrical load
AS/BI/SI15 150 500Wx400Dx750H 625Wx860Dx1350H 2 405Wx400Dx30H 0.75 KW
AS/BI/SI25 250 700Wx400Dx900H 825Wx860Dx1500H 2 605Wx400Dx30H 0.75 KW
AS/BI/SI40 400 700Wx500Dx1150H 825Wx960Dx1750H 3 605Wx500Dx30H 0.75 KW
AS/BI/SI50 500 700Wx600Dx1200H 825Wx1060Dx1800H 3 605Wx600Dx30H 0.75 KW
AS/BI/SI60 600 700Wx600Dx1450H 825Wx1060Dx2050H 3 605Wx600Dx30H 0.75 KW
AS/BI/SI80 800 700Wx800Dx1450H 825Wx1260Dx2050H 4 605Wx800Dx30H 1 KW
AS/BI/SI100 1000 830Wx830Dx1450H 955Wx1290Dx2050H 4 735Wx830Dx30H 1 KW
