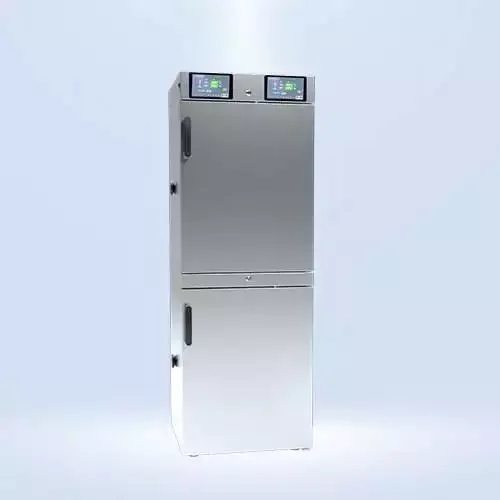

Dual BOD Incubators

Atom make Dual BOD Incubator’s are perfectly designed for the growth & storage of bacterial cultures, gentle incubation & conditioning and Media Preparation.
These Incubator’s are specifically developed to meet FDA/ICH stability requirements for accurate control and uniformity of temperature.

Atom make Dual BOD Incubator’s ensure consistent performance at any temperature within a range of 5°C to 60°C at an accuracy of ±0.5°C & at an uniformity of ±1°C. Atom make Dual BOD Incubator’s feature’s various safety, audio visual alarms, 21 CFR part 11 software and a vast range of options.

  • Double walled with 80mm PUF insulated modular panels with easy on-site assembly.
  • SS 304 Interior & Exterior either SS 304 or External Powder Coated G.I.

  • Stainless Steel Trays (Perforated or Mesh type)

  • Two Separate Compartments operating at different temperature set points.
  • Illuminated working area for clear Internal view.

  • U-shaped SS tubular heaters.

  • Forced air circulation for uniform temperature.

  • CFC free cooling system consisting of hermetically sealed compressor coupled with evaporation coil, Capillary & condenser.

  • Complete Operations is driven through PLC with data logging capacity of upto 1000 readings with email facility & SMS facility.

  • High speed Ethernet based communication.

  • All operations through a single 4″ Color Touch HMI Screen with User friendly Graphical orientation.

  • High-quality make temperature sensor (PT100, Class A) for seamless performance.

  • Safety devices for Low & High temperature cut-off settable thermostats.

  • Audio/Visual alarms for deviations and corrective actions.

  • Power supply: 230/415 volts 50 Hz main supply. Also available with 60 Hz Cycle.

Each Equipment will have IQ, OQ, PQ along with Operations & Maintenance Manual.

UPPER COMPARTMENT- DEEP FREEZER

Temperature Range : -10°C to -30°C Accuracy : ≤ +/- 3.0°C Uniformity :≤ +/- 5.0°C*

LOWER COMPARTMENT- COLD CHAMBER

Temperature Range : 2°C to 8°C Accuracy : ≤ +/- 1.0°C Uniformity : ≤ +/- 2.0°C*
  • Atom Webdesk Software.
  • 8 Temperature Scanners.
  • Stand by Cooling System with auto switch overs applicable for 430 litre & above models.
  • Door Access system (Numerical or Biometric)
  • Mobile Alert system(SMS alert)
  • 4 channel or 8 channel Remote alarm system.
  • ETHERNET COMMUNICATION
  • PLC-BASED CONTROL SYSTEM
  • E-MAIL ALERT
  • STANDBY COOLING SYSTEM
  • TOUCH SCREEN DISPLAY
  • COMPLETE RANGE OF ALARMS SAFETY
  • TOUCH SCREEN DOOR ACCESS SYSTEM
  • ALARM TRANSMISSION
  • ATOM WEBDESK SOFTWARE
