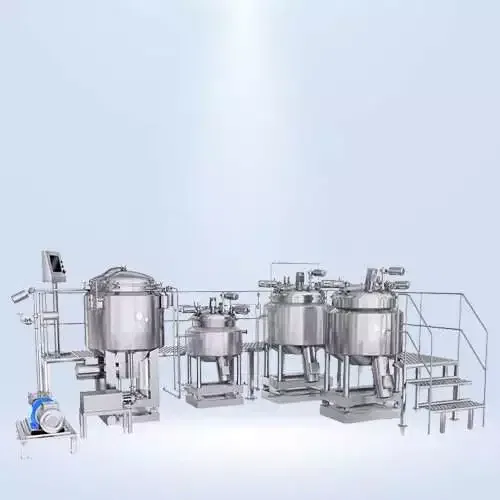

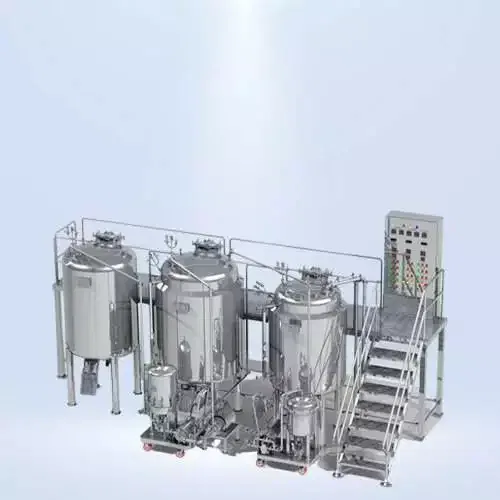

Ointment Manufacturing Plant

The Ointment Manufacturing Plants are ideal tools for the pharmaceutical & cosmetic industries for the production of Ointment, Cream, Lotions, Tooth Paste & other emulsions & homogenizations.

It is specially designed to take care of two critical factors which directly affects the quality of the Ointment / Creams.

  • Minimum man handling of Ointment
  • Negligible vacuum drops during mixing & blending.

Needless to say, it also provides the benefits of the effective manpower utilization.

EQUIPMENTS AND ACCESSORIES.

  • Manufacturing Vessel OR Jacketed Planetary Mixer
  • Wax Phase Vessel
  • Water Phase Vessel
  • Storage Vessel
  • Vacuum Pump
  • Control Panel
  • Product Piping
  • Working Platform
  • Material Transfer Pump to Transfer material from manufacturing Vessel OR Planetory Mixer to Storage Vessel & Storage Vessel to Ointment ( Tube ) Filling M/C. ( 02 nos.)
  • This system consist of a closed circuit manufacturing facility from feeding of Wax / Water Phase to loading the hopper of filling machine.
  • The Wax and Water at required temperature are transferred to Manufacturing Vessel or Planetory Mixer, by vacuum through conical filter.
  • The product during emulsion formation is recirculated through Ointment Transfer Pump The Pump also discharges the product in the Storage Vessel.
  • The Storage Vessel is then taken to the filling area and is connected to again Ointment Transfer Pump. Or Storage Vessel remain fixed ( In bigger size ) & pump transfer the ointments in the hopper of the Ointment Filling Machine.
  • The entire Plant can be operated by centralised operating panel by one operator.
  • The plant is equipped with an electrical control panel with digital temperature indicators and digital timers.
  • Minimum two batches per shift of the same product can be assured in this plant.
  • This plant conforms to CGMP standards (Paint Free Construction).
  • Enclosed are a few pages explaining the system in detail. In case of any queries feel free to contact us.

SALIENT FEATURES

  • The Plant is designed to be operated only by one operator and one helper.
  • All material transfers are done by vacuum or by transfer pumps.
  • All the vessels are CGMP (paint free construction)
  • The gaskets used are of silicon (food grade).
  • All contact parts are of S.S. 304 quality material (SS316 provided on demand) & finished to class 4B (Mirror) finish and are crevice free.
  • The entry of all agitators are from top & High Speed Emulsifier from bottom or In-line Emulsifier ( as per customer choice ).
  • All vessels are suitable for internal pressure of 1 Kg. / Sq. cm. and hence can be sterilized.
  • All pipes, pipe fittings and valves are of SS304 / SS316 ( as per customer requirement ) seamless quality, internally electro polished, with tri-clover ended joints.
  • The entire plant is equipped with CIP & SIP connections, so that customer can use these facility, if have CIP & SIP equipment.
  • All values of temperature & time of the plant are indicated digitally on the control panel. Ampere indicates on Ampere meters.
  • A micro processor based automatic operating plant can be designed as per requirement.
  • All the inlet & outlet connections are provided with tri clover joints, which are very easy for cleaning & replacement.
