Vertical Autoclave (Triple Wall)



Vertical autoclaves are also known as top loading sterilizers that come in cylindrical shape. The vertical autoclaves are widely used in hospitals, microbiology laboratory, Operation Theater (OT) for sterilization.

Description

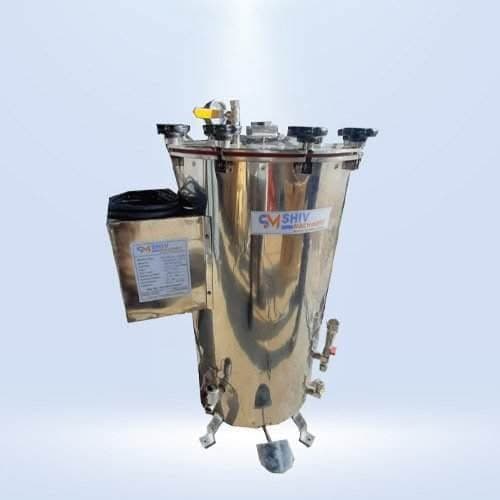

Vertical Autoclave (Triple Wall)

Shiv Machinery has the most modern state-of-the-art manufacturing facility to produce and supply international quality pharma machinery. We are indulged in manufacturing and supplying a wide range of hi-tech filling, packing and washing machines that are designed and developed keeping in mind efficiency and high performance.

Vertical autoclaves are also known as top loading sterilizers that come in cylindrical shape. The vertical autoclaves are widely used in hospitals, microbiology laboratory, Operation Theater (OT) for sterilization. The working of vertical autoclave is easy to understand. To open the lid a radial locking mechanism is fitted at top of the lid and a foot pedal is attached at the bottom. User has to press the pedal and lift the lid.

We manufacture our products using high quality raw material. Our products are manufactured in complete compliance with the global standards.

Features:

  • Triple Wall Construction Ss304.
  • Jacket, Chamber and Lid Made With SS 304 Materials
  • Knob With Radial Locking Systems
  • Two Connections For Water Inlet and Out Let.
  • Glass Gauge For Water Level Indication
  • Pressure Gage For Jacket and Chamber Pressure Measurement
  • Temprature Indicator for Chamber
  • Pressure Control Switch and Safety Valve For jacket
  • Safety Valve For Chamber
  • Automatic Steam Release Valve For Chamber
  • Joint Less Food Grade Silicon Gasket For Chamber
  • Power Supply to 220/230 v AC 50/60 Hz
  • Water Leval Cut off Switch.
  • Redial Lacking Cover
  • Operating Voltage 230V / AC 50HZ.
  • 3KW One no Heater

Technical Specification of Vertical Autoclave (Triple Wall)

Model SMTV-1 SMTV-2 SMTV-3
Volume (Liters) 75 100 180
Heater load (KW) 3 KG 3 KG 4 KG
Internal dimension(dia x height mm) 400 mm x
600 mm
400 mm x
600 mm
500 mm x
900 mm



Note : Customized Solution Also Available On Request

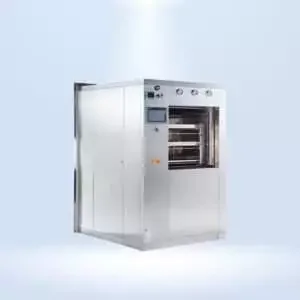

We also offer Horizontal (Rectangular) High Pressure Steam Sterilizer. To know more click here.
