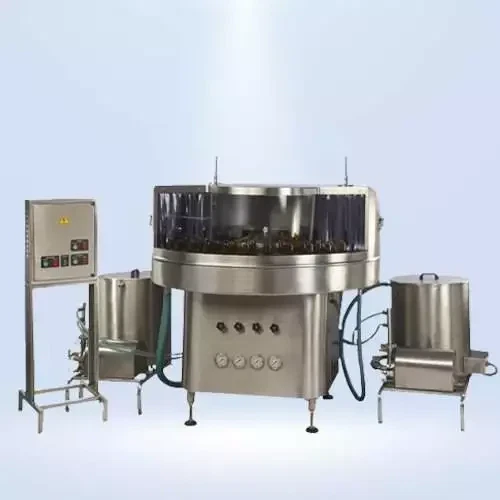

Rotary Bottle Washing Machine



The Rotary Bottle Washing Machine is used by number of industries for speedy and efficient washing, sterilizing and drying up of bottle before being filled with solutions, liquid or powders. Shiv Machinery offer advanced quality Rotary Bottle Washing Machine, which is based on Geneva mechanism. Our Rotary Bottle Washing Machine encompasses a very simple and user friendly design and its contact parts are made of stainless steel 316. The Automatic Rotary Bottle Washing Machine is suitable for rinsing bottles with pressurized water and air wash.

Description

Rotary Bottle Washing Machine

Shiv Machinery possesses a sound in-depth knowledge and understanding of the Pharma machine manufacturing, and they have kept pace with the needs of the fast growing Pharma industry.

Shiv Machinery offer advanced quality Rotary Bottle Washing Machine, which is based on Geneva mechanism. Our Rotary Bottle Washing Machine encompasses a very simple and user friendly design and its contact parts are made of stainless steel 316.The Pumps and Tanks are mounted on Portable stand for Easy Maintenance. Our Rotary Bottle Washing Machine is available in sturdy and accurate configuration and offer superior utility in varied industries especially in pharmaceutical industries.

The Rotary Bottle Washing Machine is widely used by number of industries for speedy and efficient washing, sterilizing and drying up of bottle before being filled with solutions, liquid or powders. The Automatic Rotary Bottle Washing Machine is suitable for rinsing bottles with pressurized water and air wash. It ensures contagion free water wash from one cycle to another. It can be used for washing glass, PET, lightweight bottles, plastic bottles – round, flat or square shaped. The machine is provided with four inner (Included one air wash) & one outer washes and also provides sequence of washes to customer’s choice.

Features:

  • Extremely simple and user friendly design based on Geneva Mechanism
  • All contact parts are made of SS 316
  • Four inner (Included one air wash) & one outer washes
  • Sequence of washes to customer’s choice
  • Stationary nozzles ensure contamination free water cycles
  • Easy loading and unloading
  • Individual solenoid valve for each washing sequence
  • Higher capacity centrifugal pumps to wash bigger bottles
  • The stationary nozzles avoid chipping of bottle necks
  • Pumps and tanks are mounted on portable stand for easy maintenance
  • Bottle guide system especially for lightweight bottle
  • Separate control panel to avoid any short circuit due to spraying of water
  • S.S Glycerin filled pressure gauges



Technical Specification

MODEL SMRWM-64 SMRWM-96
Out put / Hour* 2600 to 6000 4300 to 9000
No. of Container Holder 64 96
Direction of Machine Clock wise
Electric Specifications Main Motor 0.5 HP / 415 Volts / 50 Hz
Pump (2 Nos.) 1 HP / 415 Volts / 50 Hz X 2 Nos.
Electric Heaters 3 kW.
Tank Capacity 75 Ltrs. S.S. 316 (2 Nos.)
Wash Cycle 4 Inner+1 Outer
Working Height 860 mm ± 50 mm
Change parts required (A) Neck Dia.: Neck holding pocket
(B) Flat Containers : Special type of cups



Input Specification

Container Size Round Ø 30 mm to Ø100 mm Ø 30 mm to Ø80 mm
Respective Height : 50 mm to 270 mm
Neck Dia. : Ø 20 mm to Ø 28 mm
Flat / Square Length : 30 mm to 100mm Length : 30 mm to 80 mm
Width : 10 mm to 50 mm
Height : 58 mm to 190 mm



Consumption of water

First Wash 200 Ltrs./Hr. 230 Ltrs./Hr.
Second Wash No consumption as such, water loss during
re-circulation shall be compensated
Third Wash 200 Ltrs./Hr. 230 Ltrs./Hr.
Fourth Wash No consumption as such, water loss during
re-circulation shall be compensated OR Air Wash
Outside Wash 200 Ltrs./Hr. 230 Ltrs./Hr.



Utility Requirement

Electric Supply 3 Phase + Neutral + Earthing
Electric Load 5 kw
Air Consumption 5 CFM @ 6 kg
