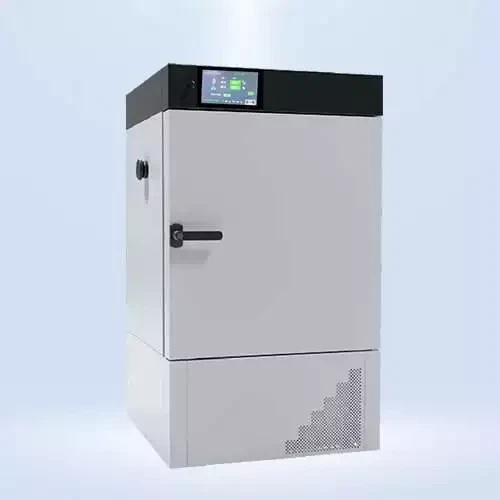

Photostability Chamber

Photostability chambers are utilised for light exposure testing of drug products in the pharmaceutical industry according to ICH Q1B FDA Photostability Testing of New Drug Substances and Products. Our photostability test chambers are designed to meet option 2 of this guideline. Our chambers are available in two sizes featuring a compact benchtop and a spacious upright model with uniform light, temperature and humidity distribution.

The photostability testing chambers utilise cool white and ultraviolet-A fluorescent lamps with power levels that allow photostability tests to be carried out in less than 100 hours. Exceptional quality, innovative product features, high accuracy sensors and smart touchscreen controls provide optimum conditions for your photostability testing.

  • Double walled with 80mm PUF insulated modular panels with easy on-site assembly.
  • SS 304 Interior & Exterior either SS 304 or External Powder Coated G.I.

  • Stainless Steel Trays (Perforated or Mesh type)
  • Illuminated working area for clear Internal view.
  • U-shaped SS tubular heaters.

  • Forced air circulation for uniform temperature.

  • Complete Operations is driven through PLC with data logging capacity of upto 1000 readings with email facility & SMS facility.

  • High speed Ethernet based communication.

  • High speed Ethernet based communication.

  • High-quality make temperature sensor (PT100, Class A) for seamless performance.
  • Safety devices for Low & High temperature cut-off settable thermostats.

  • Audio/Visual alarms for deviations and corrective actions.

  • PU wheels for easy movement
  • Full length inner glass door & outer metal door with gasket & lock.

  • Power supply: 230/415 volts 50 Hz main supply. Also available with 60 Hz Cycle.

Each Equipment will have IQ, OQ, PQ along with Operations & Maintenance Manual.

Temperature Range: (Ambient+5)°C to 60°C
Temperature Accuracy: ± 0.5°C
Temperature Uniformity: ± 1°C

  • Atom Webdesk Software.
  • Temperature Scanners.
  • Stand by Cooling System with auto switch overs applicable for 430 litre & above models.
  • Door Access system (Numerical or Biometric)
  • Mobile Alert system(SMS alert)
  • 4 channel or 8 channel Remote alarm system.
  • ETHERNET COMMUNICATION
  • PLC-BASED CONTROL SYSTEM
  • E-MAIL ALERT
  • TOUCH SCREEN DISPLAY
  • COMPLETE RANGE OF ALARMS SAFETY
  • TOUCH SCREEN DOOR ACCESS SYSTEM
  • ALARM TRANSMISSION
  • ATOM WEBDESK SOFTWARE
Models Cap. in liters Internal size in mm External size in mm Tray Qty. Tray size in mm Electrical load
AS/LI/SI15 150 500Wx400Dx750H 625Wx860Dx1350H 2 405Wx400Dx30H 0.75 KW
AS/LI/SI25 250 700Wx400Dx900H 825Wx860Dx1500H 2 605Wx400Dx30H 0.75 KW
AS/LI/SI40 400 700Wx500Dx1150H 825Wx960Dx1750H 3 605Wx500Dx30H 0.75 KW
AS/LI/SI50 500 700Wx600Dx1200H 825Wx1060Dx1800H 3 605Wx600Dx30H 0.75 KW
AS/LI/SI60 600 700Wx600Dx1450H 825Wx1060Dx2050H 3 605Wx600Dx30H 0.75 KW
AS/LI/SI80 800 700Wx800Dx1450H 825Wx1260Dx2050H 4 605Wx800Dx30H 1 KW
AS/LI/SI100 1000 830Wx830Dx1450H 955Wx1290Dx2050H 4 735Wx830Dx30H 1 KW
