Ultra Sonic Cleaners & Bath



Shiv Machinery is one solution offering ultrasonic products. An ultrasonicator works on the principle of ultrasound frequency (usually 20-40 kHz). Here Electrical energy is converted into ultrasound waves by means of ultrasonic transducers.



Description

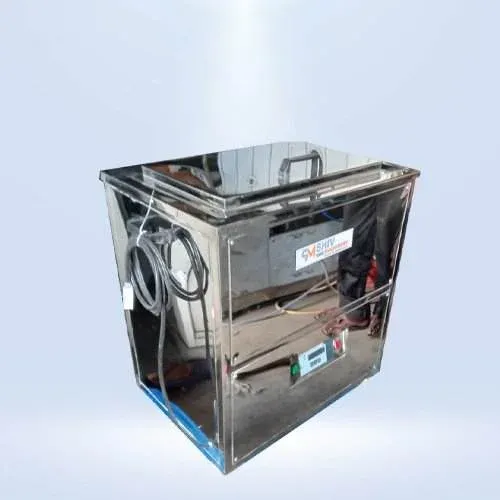

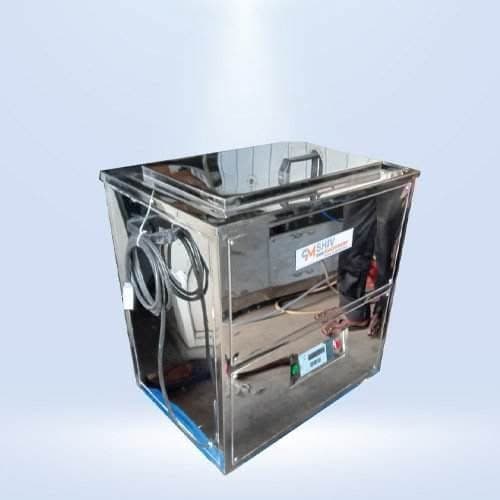

Ultra Sonic Cleaners & Bath

Shiv Machinery is one solution offering ultrasonic products. An ultrasonicator works on the principle of ultrasound frequency (usually 20-40 kHz). Here Electrical energy is converted into ultrasound waves by means of ultrasonic transducers.

Ultrasonic Cleaner is based on cavitation effect. The cavitation effect is caused by a high-frequency ultrasonic wave vibration signal in fluid. Microscopic bubbles form and they implode violently that cause Cavitation, which gives out great impact to the cleaning subject and provides an intense scrubbing action on the surface of the cleaning subject. Additionally, the bubbles are small enough to penetrate even microscopic crevices, cleaning them thoroughly and consistently.

Technical Specification

MODEL Power Capacity Ltr. Tank Dimension (LxWxH)
SM Ortho 500 W 17 450 x 250 x 150 mm
SM 20 500 W 20 500 x 250 x 150 mm
SM 30 600 W 30 500 x 300 x 200 mm
SM 40 750 W 40 500 x 400 x 200 mm
SM 50 1000 W 50 500 x 500 x 200 mm



Application

  • Jewellery Industry for intricate parts.
  • Auto Industry for rugged parts.
  • Industrial Manufacturing.
  • Electronics Industry for delicate parts.
  • Dental Clinic & Laboratories.
  • Hospitals & Medical Industry.

Salient Feature

  • Ultrasonic bath is designed with MOSFET / IGBT & the latest microcontroller base tec.
  • Auto tunning with overload protection arrangement.
  • Imported transducers are used in our Ultrasonic Cleaner (Ultrasonic bath).
  • Operating frequency of 23/33KHz. Variable frequency on demand.
  • Digital tuning & Thermodynamic design to ensure the long life of the generator

Note: Customized Solution Also Available On Request





We also offer Sterilization Consumables & Testing Materials. To know more click here.
