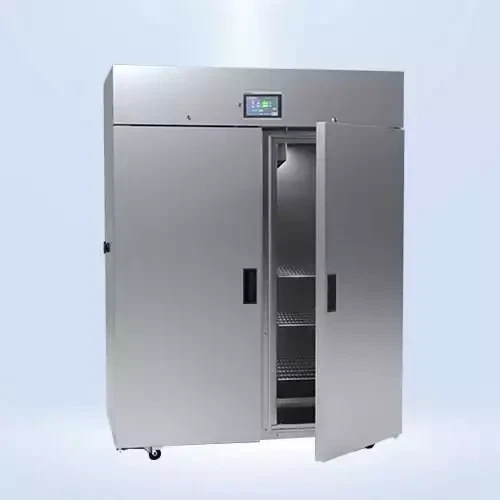

Reach In – Cooling Chamber

Cooling chambers are known as Pharma Refrigerator, Cooling cabinet etc. and the equipment will maintain the set temperature between 2 to 8⁰C. Atom make Pharma Refrigerator are comply with the CGMP lab standard as per Pharma guidelines. Equipment is available in standard models with different size and dimension from 150 liter to 2000 liter. Custom built chambers also can construct as per the requirement.

Atom make Cooling Chambers are perfectly designed and are specifically developed to meet FDA/ICH requirements for accurate control and uniformity of temperature.Atom make Cooling Chambers feature’s various safety, audio visual alarms, 21 CFR part 11 software and a vast range of options and is the most preferred choice for your studies. Each Atom make Stability Chamber’s have been specifically developed to meet the requirements of test laboratories in the pharmaceutical industries.

  • Double walled with 80mm PUF insulated modular panels with easy on-site assembly.
  • SS 304 Interior & Exterior either SS 304 or External Powder Coated G.I.

  • Stainless Steel Trays (Perforated or Mesh type)

  • Observation window – 300 x 300 mm

  • Illuminated working area for clear Internal view.

  • U-shaped SS tubular heaters.

  • Forced air circulation for uniform temperature.

  • Non Condensing steam injection type humidity system with standby heater option & auto switch overs function for better performance.

  • CFC free cooling system consisting of hermetically sealed compressor coupled with evaporation coil, Capillary & condenser.

  • Stand by Cooling system’s for Chamber better performance.

  • Complete Operations is driven through PLC with data logging capacity of upto 1000 readings with email facility & SMS facility.

  • High speed Ethernet based communication.

  • All operations through a single 4″ Color Touch HMI Screen with User friendly Graphical orientation.

  • High-quality make temperature sensor for seamless performance.

  • Safety devices for Low & High temperature cut-off settable thermostats & high humidity cut-off device.

  • Audio/Visual alarms for deviations and corrective actions.

  • PU wheels for easy movement

  • Power supply: 230/415 volts 50 Hz main supply. Also available with 60 Hz Cycle.

Each Equipment will have IQ, OQ, PQ along with Operations & Maintenance Manual.

Temperature Range: 2°C to 8°C
Temperature Accuracy: ± 0.5°C
Temperature Uniformity: ± 1°C
  • Atom Webdesk Software.
  • Temperature Scanners
  • Stand by Cooling System with auto switch overs applicable for 430 litre & above models.
  • Door Access system (Numerical or Biometric)
  • Mobile Alert system(SMS alert)
  • 4 channel or 8 channel Remote alarm system.
  • ETHERNET COMMUNICATION
  • PLC-BASED CONTROL SYSTEM
  • E-MAIL ALERT
  • STANDBY COOLING SYSTEM
  • TOUCH SCREEN DISPLAY
  • COMPLETE RANGE OF ALARMS
  • SAFETY
  • TOUCH SCREEN DOOR ACCESS SYSTEM
  • ALARM TRANSMISSION
  • ATOM WEBDESK SOFTWARE
Models Cap. in liters Internal size in mm External size in mm Tray Qty Tray size in mm Electrical load
AS/CC/SI15 150 500Wx400Dx750H 625Wx860Dx1350H 2 405Wx400Dx30H 0.75 KW
AS/CC/SI25 250 700Wx400Dx900H 825Wx860Dx1500H 2 605Wx400Dx30H 0.75 KW
AS/CC/SI40 400 700Wx500Dx1150H 825Wx960Dx1750H 3 605Wx500Dx30H 0.75 KW
AS/CC/SI50 500 700Wx600Dx1200H 825Wx1060Dx1800H 3 605Wx600Dx30H 0.75 KW
AS/CC/SI60 600 700Wx600Dx1450H 825Wx1060Dx2050H 3 605Wx600Dx30H 0.75 KW
AS/CC/SI80 800 700Wx800Dx1450H 825Wx1260Dx2050H 4 605Wx800Dx30H 1 KW
AS/CC/SI100 1000 830Wx830Dx1450H 955Wx1290Dx2050H 4 735Wx830Dx30H 1 KW
