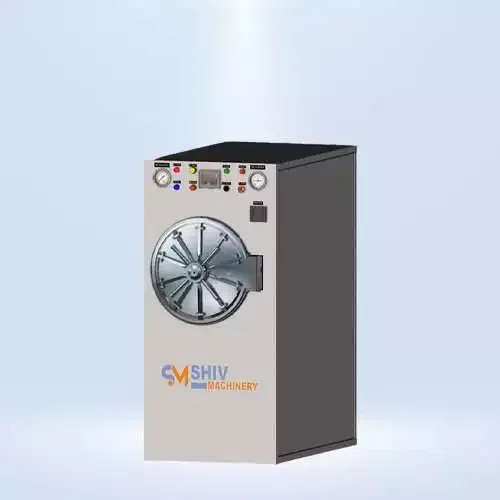

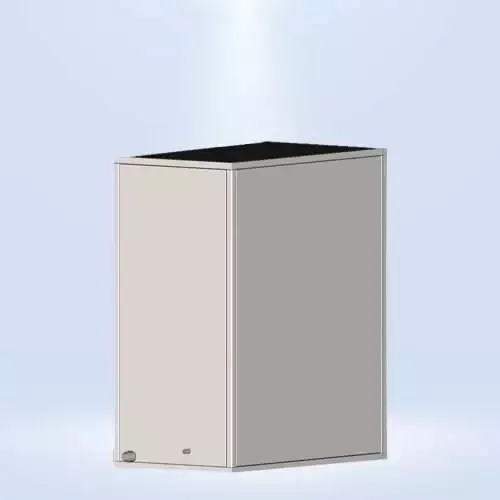

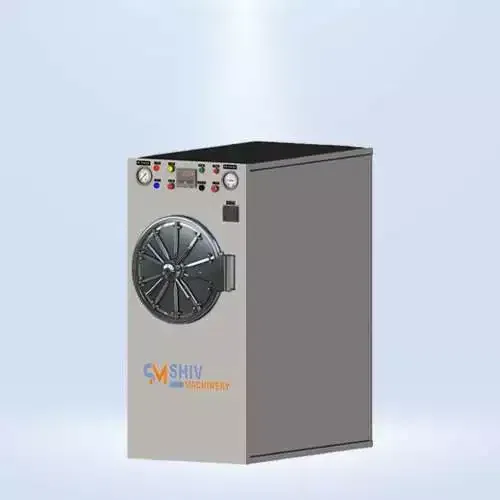

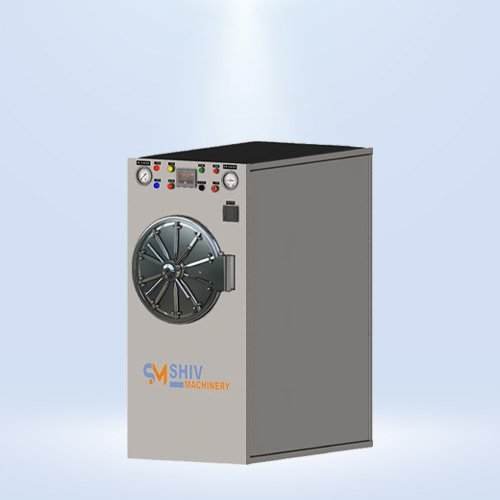

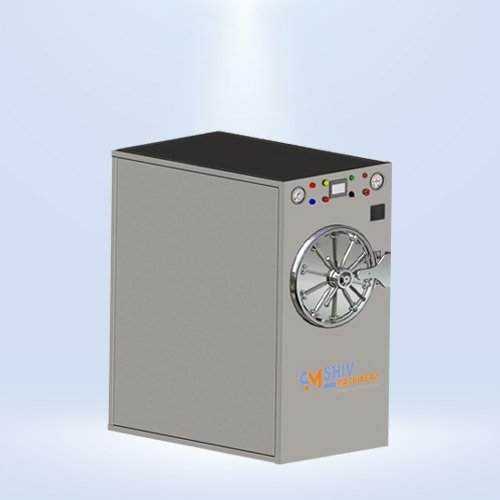

Horizontal Cylindrical High-Pressure Steam Sterilizer

Handsomely Made For Long Service and to provide easier and surer Sterilization for use in Hospitals, Nursing Homes, Pharmaceutical Industries and Laboratories. The High Pressure Horizontal Cylindrical Steam Sterilizer is designed for safe & efficient sterilization of various items such as wrapped or unwrapped goods, instruments & utensils etc.

Horizontal High-Pressure Cylindrical Steam Sterilizer:

Shiv Machinery has the most modern state-of-the-art manufacturing facility to produce and supply international quality pharma machinery. We manufacture and supply a wide range of hi-tech filling, packing and washing machines that are designed and developed keeping in mind efficiency and high performance.

High Pressure Horizontal Cylindrical Steam Sterilizer is one of the first-rate products that have a wider acceptance in the market. We manufacture our products using high quality raw material. Our products are manufactured in complete compliance with the global standards.

The High Pressure Horizontal Cylindrical Steam Sterilizer is designed for safe & efficient sterilization of various items such as wrapped or unwrapped goods, instruments & utensils etc.

Our product is handsomely made For Long Service and to provide easier and surer Sterilization for use in Hospitals, Nursing Homes, Pharmaceutical Industries and Laboratories.

CONSTRUCTION :

  • Steam generator, ring ,back plate and chambers are made of strong 304 G / 316 stainless steel.
  • Completely leak proof joints and they all are strongly argon welded .
  • The outer jacket is covered with stainless steel sheet for elegance and is thickly insulated which prevent heat loss due to radiation.
  • All sterilizers are hydraulically tested up to 2.5 times of working pressure. By mean of steam under pressure of 5 to 22 PSI ± 3 PSI (Adjustable).
  • The unit is fitted with Automatic pressure control switch, PID controller, water level indicator, timer alarm, Temperature gauge, vacuum drying facility with Moisturizing trap and vacuum breaker.
  • It is mounted on tubular M.S. frame with ground leveling rims.

SAFETY DOOR:

It is provided with a positive radial locking safety door with neoprene rubber/ silicon gasket which cannot be opened while the chamber is under pressure and disengages automatically when chamber is exhausted. This gives complete safety to the working personnel against explosive opening.



Technical Specification

Model Inner Dimension Capacity Ltr. Heater Load Sterilization Temp & Pressure Operating Pressure
SM-75 16” x 24” 75 6 kW 1.2 Kg/cm2(15-18psi)at 121°C From 10 psi to 20 psi
SM-175 20’ x 36” 175 18 kW
SM-235 20” x 48” 235 18 kW
SM-295 20” x 60” 295 24 kW
SMDD-235 20” x 48” 235 18 kW
SMDD-295 24” x 60” 295 24 kW



Note : Working sterilization °C/134°C Power Supply 440V, 3 Phase Power supply, Single phase, 220V AC on request

Note : Customized Solution Also Available On Request
