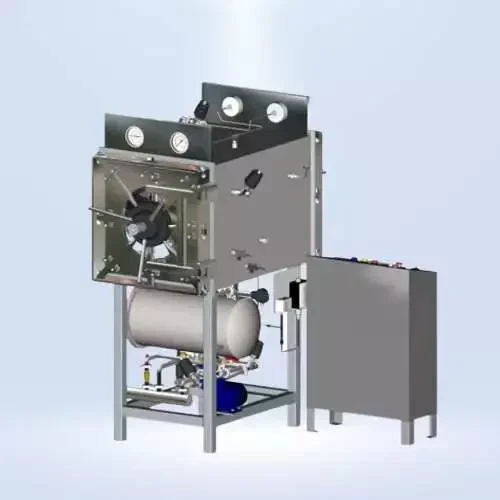

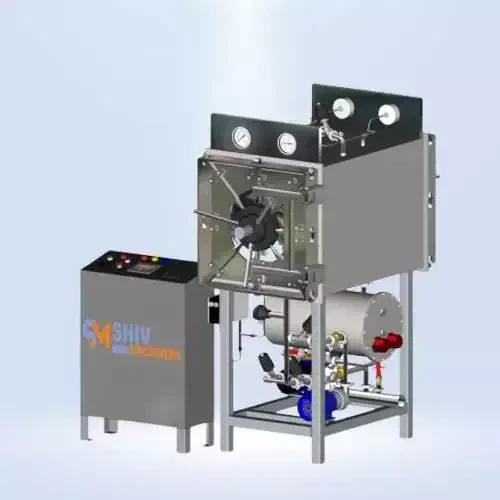

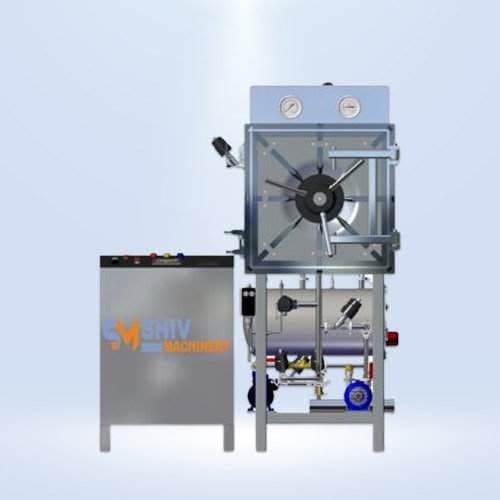

Horizontal (Rectangular) High Pressure Steam Sterilizer
Steam Sterilizers are also known as Autoclaves. They are typically used for healthcare or industrial applications. Steam sterilizers are an essential part of the disinfection and sterilization process. The sterilizer we manufacture is provided with triple safety measures.
Horizontal (Rectangular) High Pressure Steam Sterilizer
Shiv Machinery never fails to accelerate and simplify the work of pharmaceutical industry and other relevant industries by providing the best pharma machinery for your application specific requirements.
Steam Sterilizers are also known as Autoclaves. They are typically used for healthcare or industrial applications. Steam sterilizers are an essential part of the disinfection and sterilization process which is performed by sterile processing departments (SPD) in healthcare facilities.
Horizontal (Rectangular) High Pressure Steam Sterilizer is designed for safe & efficient sterilization of various items such as wrapped or unwrapped goods, instruments & utensils etc. Steam Sterilizers or Steam Sterilizers or Autoclaves are found in many medical settings, laboratories, and other places that need to ensure the sterility of an object. The sterilizer we manufacture is provided with triple safety measures
We manufacture our products using high quality raw material and we ensure all the quality standards are followed. Our products are manufactured in complete compliance with the global standards.
TRIPLE SAFETY : The sterilizer is provided with triple safety.
- To automatically limit the pressure to the required set valveit is provided by a pressure control switch.
- Two spring loaded safety valves one at chamber and and one at boiler level.
- It is also provided adead weight safety valve at the chamber level.
A PLUG SCREEN prevents the discharge line from choking. The plug is easily removable for routine cleaning. The air is circulated through the chamber by a powerful Ejector (for drying sterilized linen). The circulating air passes through a corrosion resistant metal wool filter. To show the chamber temperature a Dial thermometer is provided. To break vacuum case of vacuum forma condensation AUTOMATIC VACUUM BREAKER is provided.
Technical Specification
| Model | Inner Dimension | Capacity Ltr. | Heater Load | Sterilization Temp & Pressure | Operating Pressure |
|---|---|---|---|---|---|
| SMHR-180 | 18” x 18” x 36” | 180 | 12 kW | 1.2 Kg/cm2(15-18psi)at 121°C | From 10 psi to 20 psi |
| SMHR-240 | 18” x 24” x 36” | 240 | 12 kW | ||
| SMHR-320 | 24” x 24” x 36” | 320 | 15 kW | ||
| SMHR-430 | 24” x 24” x 48” | 430 | 18 kW | ||
| SMHR-540 | 24” x 24” x 60” | 540 | 22 kW | ||
| SMHR-650 | 24” x 24” x 72” | 650 | 36 kW | ||
| SMHR-1000 | 30” x 36” x 60” | 1000 | 45 kW |
Operating Temperature and Pressure Sterilizing Temp. : 121°C.Sterilizing Pressure : 1.2 to 1.5 kg/Cm2,(15 psi to 22 psi)
Note : Customized Solution Also Available On Request

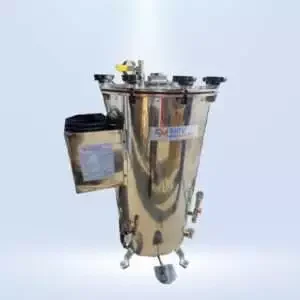

We also offer Vertical Autoclave (Double Wall). To know more click here.
