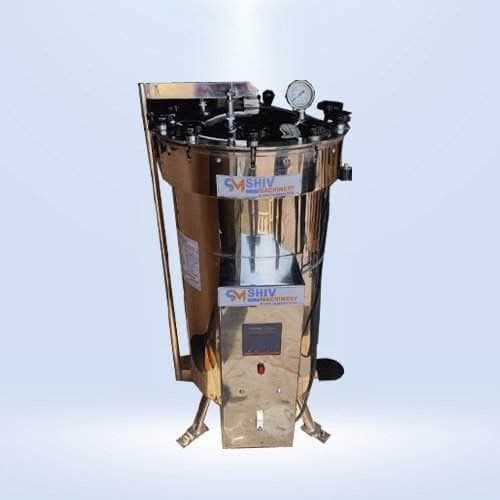

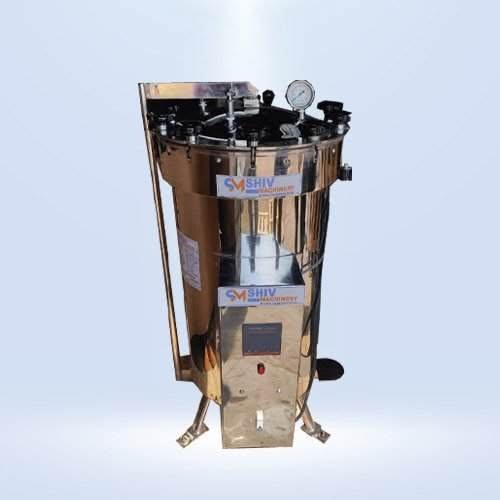

Vertical Autoclave (Double Wall)
Vertical autoclaves are also known as top loading sterilizers that come in cylindrical shape. The vertical autoclaves are widely used in hospitals, microbiology laboratory, Operation Theater (OT) for sterilization.
Vertical Autoclave (Double Wall)
Shiv Machinery has the most modern state-of-the-art manufacturing facility to produce and supply international quality pharma machinery. We are indulged in manufacturing and supplying a wide range of hi-tech filling, packing and washing machines that are designed and developed keeping in mind efficiency and high performance.
Vertical autoclaves are also known as top loading sterilizers that come in cylindrical shape. The vertical autoclaves are widely used in hospitals, microbiology laboratory, Operation Theater (OT) for sterilization. The working of vertical autoclave is easy to understand. To open the lid a radial locking mechanism is fitted at top of the lid and a foot pedal is attached at the bottom. User has to press the pedal and lift the lid.
We manufacture our products using high quality raw material. Our products are manufactured in complete compliance with the global standards.
Features:
- It is used for sterilization under saturated steam pressure at any selected point between15 to 22 psi (it is adjustable), however this can be used for higher pressure up to 30 psi.0
- It has working temperature of 121C.
- These double walled units have inner chamber (Boiler) made of stainless steel SS 304 / SS 316 grade (as per demand).
- Its outer wall is covered with stainless steel sheet.
Technical Specification of Vertical Autoclave (Double Wall)
| Model | SMDV-1 | SMDV-2 | SMDV-3 |
|---|---|---|---|
| Volume (Liters) | 75 | 100 | 180 |
| Heater load (KW) | 3 KG | 3 KG | 4 KG |
| Internal dimension(dia x height mm) | 400 mm x 600 mm |
400 mm x 600 mm |
500 mm x 900 mm |
Note : Customized Solution Also Available On Request
We also offer Horizontal (Rectangular) High Pressure Steam Sterilizer. To know more click here.
